Emerson

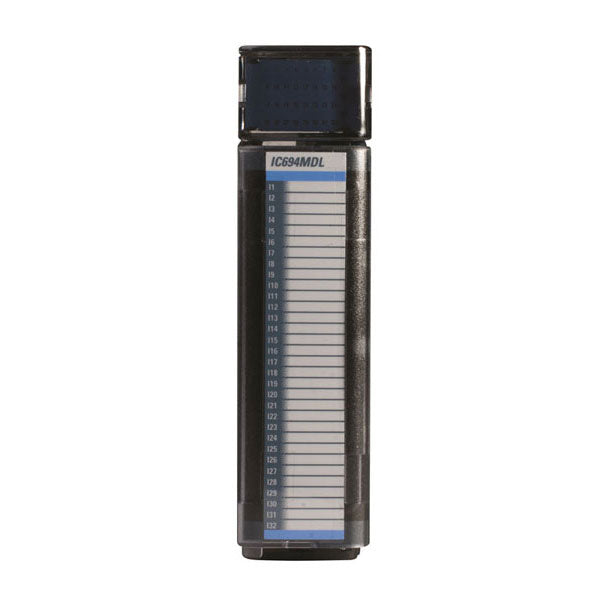

PACSystems™ RX3i DC Voltage Input module, 24V, 32 point, with selectable response time
PACSystems™ RX3i DC Voltage Input module, 24V, 32 point, with selectable response time
SKU:IC694MDL660
RX3i IO is designed for mission critical discrete and process applications. The rack-based IO offers advanced diagnostics and outstanding flexibility, with a wide range of standard and advanced IO.
- Input Count, Type & Speed
- 32 Point; Pos/Neg Logic; 0.5 to 100mS selectable On/Off
- Supply Voltage and On/Off Voltage
- 24VDC; Range 20~30V; On >11.5
- Backplane Current Consumption
- 300mA @ 5VDC
- Approvals & Standards Ordinary Locations
- UL 508, equivalent to CSA C22.2 No 142M1987 standard
- Approvals & Standards Hazardous Locations
- Class I, Div. 2, Groups A, B, C, D
- Mounting Format
- On Panel/DIN Rail
Features
- High-speed and patented technology for faster throughput
- Hot swap capability
- A variety of voltage ranges, types, current capacity, isolation and response time to meet your application needs.
